EATON INTERNORMEN

SIDELINE

Process Filters

Bag Filter Housings

EXPERT ASSISTANCE

DETAILS

A SIDELINE bag filter housing vessel from Eaton is a full-featured investment-cast filter vessel with an ASME Code Stamp. A bead, not sand, blasted finish that makes cleaning complete and a cover that can be easily adapted to different opening directions are among SIDELINE’s many value added features.

Units come standard with filter bag size 01 and 02 stainless steel restrainer baskets. For smaller flow rates also available in the MINILINE version in sizes 03 and 04.

PRODUCT INFO

Brand: EATON INTERNORMEN
Category: Process Filters
Subcategory: Bag Filter Housings
Pressure: bar
  • No of Bags: 3+
  • Closure: Eyebolts or T-Bolt
  • Design: Heavy Duty Industrial

KEY FEATURES

  • Side inlet piping connection
  • Sizes for #01 single or #02 double-length filter bags
  • Unique two-weld design
  • Buna N seals standard
  • Stainless steel basket
  • 2″ or 3″ RF 150-lb ANSI flanged connections
  • Maximum operating pressure of 150 psi
  • Maximum operating temperature of 400°F with Viton seals
  • Evacuation cover with swing bolts
  • Adjustable mounting legs
  • ASME code stamp
  • Type 304 or 316 stainless steel construction

USE & APPLICATIONS

  • Automotive
  • Food and Beverage
  • Chemical Processing
  • Paints, Inks, Resins and Coatings
  • Electronics
  • Petrochemicals
  • Municipal Water Treatment
  • Industrial Water Treatment
  • Pulp and Paper
  • Pharmaceutical
  • Lubricants, Metalworking Fluids
  • Solvents

RELATED PRODUCTS

EATON INTERNORMEN

DU

Filters

Duplex Filters

Eaton´s low pressure duplex filters of the DU series are suitable for operating pressure up to 914 psi (63 bar). A three-way-change-over valve which is, integrated in the middle of the housing, makes it possible to switch from the dirty filter-side to the clean filter-side without interrupting operation.
Get Details

RMF SYSTEMS / DES-CASE

MXWV

Water Removal

Vacuum Dehydration

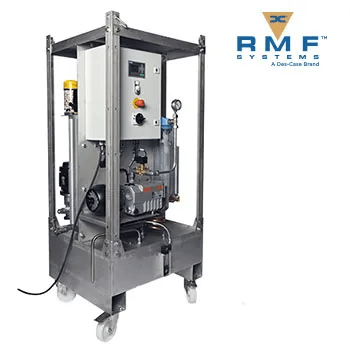

The Vacuum Dehydration Units remove liquid, gas and solid contamination, which are corrosive and contribute to the reduction of machine life. The Maxi Water Vac offers protection against malfunctions, break downs and total failures.
