AFR

DETAILS

The AFR Industrial Filter is a unique, expandable circular design for increased capacity in a compact one-square-meter footprint. The AFR-Series is ideal for high volume, low viscosity applications with retentions as low as 2 microns. It also uses cleanable media that reduces life cycle costs and maximizes productivity.

PRODUCT INFO

Brand: EATON INTERNORMEN

Category: Process Filters

Subcategory: Automatic Self-cleaning

Pressure: 17.2 bar

Technology: Backwashing
Total Volumetric Capacity: 4-4.8 gal (15.1-18.1 liters)
Operating Pressure: 250 psi (17.2 bar)

Data Sheet

Brochure

KEY FEATURES

Solids removal from 2 to 1,700 microns
Versatility with a modular design that enables future capacity and configuration flexibility.
Single system Flow rates up to 3,000 gpm (681 m³/hr)
Smooth pipe and nozzle connection transitions to avoid dead spots in the fluid stream and minimize pressure drop.
A broad selection of filter media materials and retentions suitable for a wide range of applications.
Proprietary 3-way, full-ported valves allow fast, frequent sequencing and maximum cleaning force during backwashing.
Isolated top-to-bottom backwash flow ensures complete and efficient media cleaning while continuing to deliver filtered product downstream.
Numerous automated backwash options for operator-free service and minimal backwash effluent (<2% of system volume).
Available ACCUFLUX media is 98.6 % efficent
Configured with an array of up to eight – 4″ (101.8 mm) or 6″; (152.4 mm) body tubes surrounding a central cleaning valve

USE & APPLICATIONS

City water lines
Hot condensate
Chiller water
Fresh water
Whitewater / shower water
Cip fluids
Papermaking wet end starch
Pelletizer water
Single and duo tubular filters for a wide range of applications up to 1000 psi and high viscosity applications

MEMBRANE SOLUTIONS

SMBH

Process Filters

Bag Filter Housings

SMBH series multi-bags filter housing is suitable for high flow filtration. From 2 bags to 24 bags, the specifications are complete, and quick-open design is available.

Get Details

MEMBRANE SOLUTIONS

SSBH

Process Filters

Bag Filter Housings

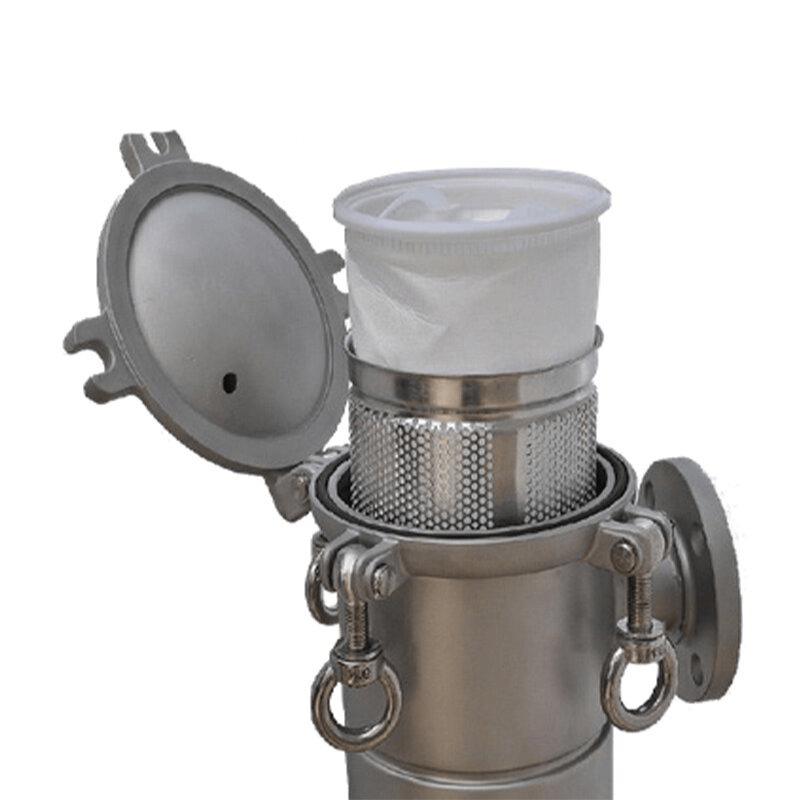

SSBH series side entry bag filter housing is a kind of pressure type filter device, which mainly consists of three parts: filter housing, filter basket and filter bag, with compact and simple structure.
